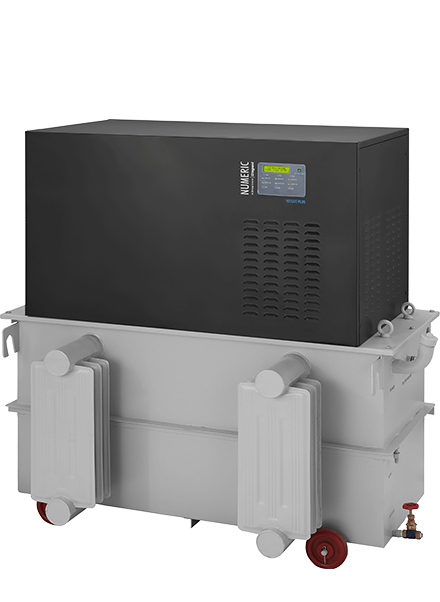

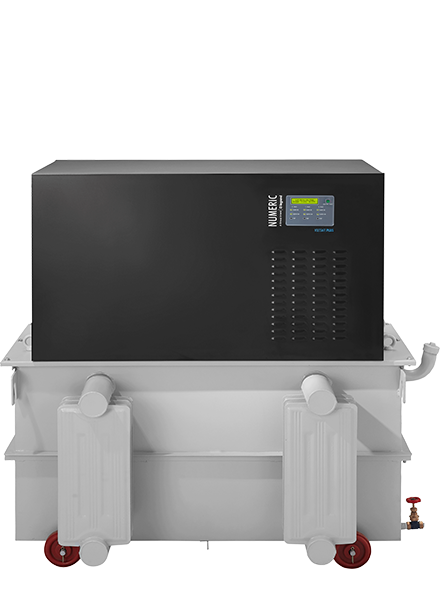

Voltsafe PLUS – Oil Cooled
₹1.00
Voltsafe Plus oil-cooled servo stabilizer delivers constant stabilized output voltage for your critical application loads. The micro-processor based control system monitors and manages precise measurement and correction of system output voltage. The True RMS sensing enables, stabilizes & controls output voltage even under adverse waveform conditions. The firmware controlled buck-boost transformer provides efficiency up to 97%. This helps achieve better TCO and also provides effective protection for critical loads against high-low voltage & frequency, overload, phase correction, High N-E voltage, short circuit & spikes.
FEATURES
Generic Features
- Configurable output voltage as per user requirement
- Auto start functionality for hassle-free operation
- High MTBF to assure continuous power availability
- Configurable trip time delay to achieve better protection & fault handling capacity
- Better output voltage regulation ±1% to have stable output power
- Genset compatibility for seamless power continuity during blackout
- Metering accuracy ±1% for accurate power measurement
Additional information
| Range | 100 kVA, 12 kVA, 125 kVA, 15 kVA, 150 kVA, 200 kVA, 22.5 kVA, 30 kVA, 45 kVA, 6 kVA, 60 kVA, 75 kVA |
|---|
TECHNICAL FEATURES
| Range | 6 – 200 kVA |
| Input Power Factor | Immune to Load PF |
| Input Frequency | 47 ~ 53 +/- 0.5% H |
| Output Voltage | 415 V |
| AC – AC Efficiency | > 97% |
| Operating Temperature | 0 – 40 ° C |
| Correction Speed | 50V/sec (Ph-N) |
| Cooling | Oil Cooled |
| Protection | IP20 |
| Relative humidity | 0 – 95% non-condensing |
| Noise level at 1m (dBA) | =< 60dB at 1 meter distance |
