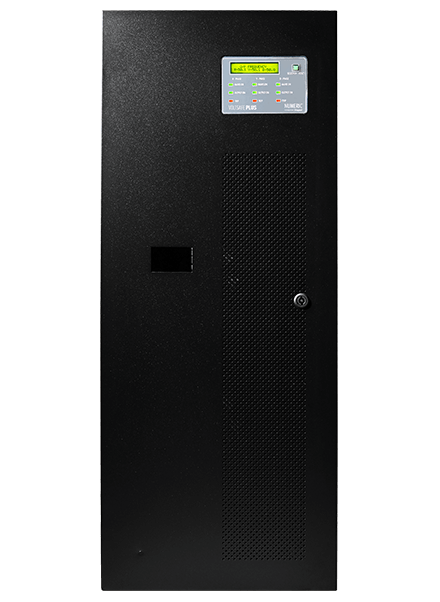

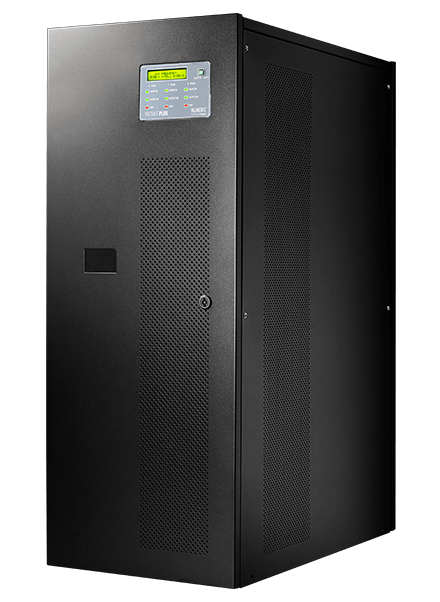

Voltsafe PLUS – Air Cooled
₹1.00
Fluctuations in voltage have become a common phenomenon. They impair the efficiency of sophisticated equipment like CNC machines, industrial automation, medical and communication devices. Numeric Voltage stabilizers are designed to deliver constant voltage, thereby preventing aberrations in the supply line voltage.
FEATURES
Generic Features
- Efficiency up to 97%
- Alpha-Numeric LCD Display
- Advanced MCU-Based Technology
- Speed of Correction up to 50V / sec
- Response Time < 20ms
- Immune to Load PF & Supply Frequency Variations
- Audible Warning
- Generator Compatibility
- IS 9815 and IS 2026 Certified
Additional information
| Range | 10 kVA, 100 kVA, 125 kVA, 15 kVA, 150 kVA, 20 kVA, 30 kVA, 40 kVA, 50 kVA, 60 kVA, 70 kVA, 80 kVA |
|---|
TECHNICAL FEATURES
| Range | 10 – 150 kVA |
| Input Frequency | 47 – 53 Hz |
| Output Voltage | 415V +/- 1% |
| AC – AC Efficiency | Up to 97% |
| Operating Temperature | 0 – 40 ° C |
| Normal Range | 340 – 480 V |
| Mid Range | 320 – 500 V |
| Wide Range | 290 – 480 V |
| Correction Speed | 50 V / Sec |

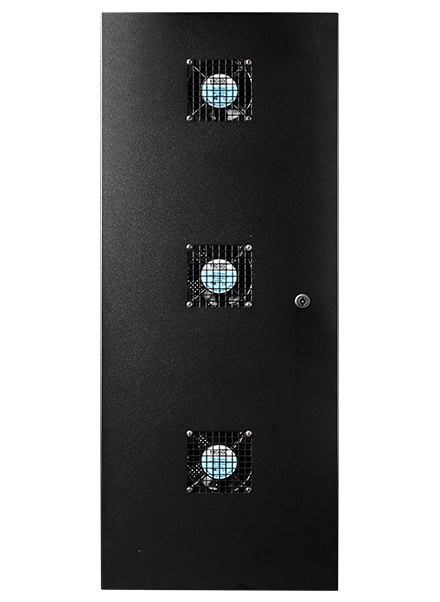

| Cooling | Air Cooled |
| Display | Alpha-Numeric LCD Display |
| Protection | Single Phase Protection |
