Keor HP
₹1.00

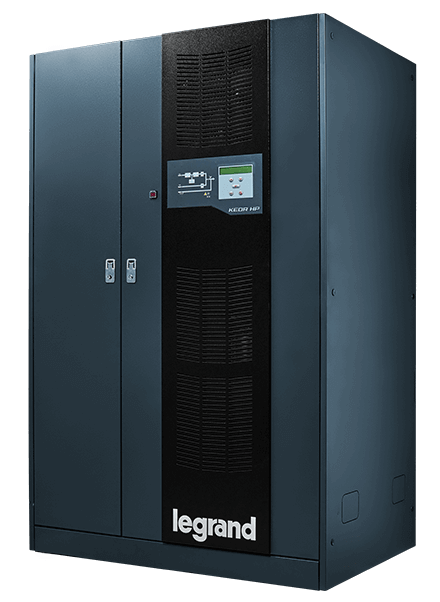

KEOR HP is VFI Three Phase online double conversion UPS from 100 to 800 kVA. It has 3-Level IGBT technology, PWM high frequency with the option of connectivity in parallel to have N+X redundancy of up to 6 units in total. The rated power delivery is 100-125-160-200-250-300-400-600-800 kVA. They are designed with built-in inverter isolation transformer. This reliable and rugged UPS range supports the most critical loads which makes it suitable for commercial, data centre, manufacturing, health care and infrastructure needs.
FEATURES
Generic Features
- Compact Footprint
- Input Auto Phase Correction
- Rectifier Walk-in & Delay Start
- Back Feed Detection Circuit
- Temperature Compensated Battery Charging
- Power Parallel up to 4.8 MW
Additional information
| Range | 100 kVA, 125 kVA, 160 kVA, 200 kVA, 250 kVA, 300 kVA, 400 kVA, 500 kVA, 600 kVA, 800 kVA |
|---|
TECHNICAL FEATURES
| Range | 10 – 40 kVA |
| Input Voltage Range | 340 – 460 V |
| Input Power Factor | > 0.99 |
| THDi | < 3% |
| Input Frequency | 45 – 65 Hz |
| Output Voltage | 380 / 400 / 415 V |
| AC – AC Efficiency | 95% |
| ECO Mode | > 98.5% |
| Isolation Transformer | Inverter Transformer |
| Communication Option | SNMP, MODBUS, Dry Contacts, RS 232 |
| Sensor Manager | Temperature, Humidity & Door Sensors |
| Email Facility | Standard with SNMP |
| Operating Temperature | 0 – 40 ° C |
| Ingress Protection | IP 20 |
